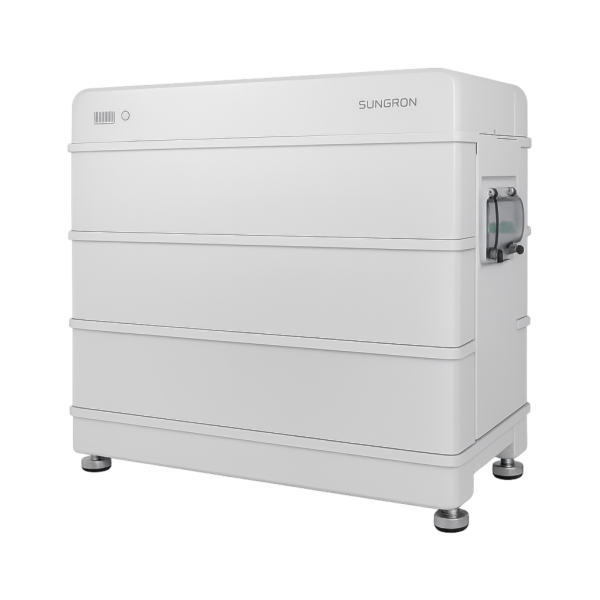

Sungrow SBR064

You do not have permission to view the prices

Description

Specification	Value
System Type	High-voltage battery storage system (SBR series)
Usable Battery Capacity	6.4 kWh
Scalability	2–8 modules (6.4–25.6 kWh), up to 4 systems in parallel (9–100 kWh)
Number of Battery Modules	2 modules
Nominal Voltage	192 V
Continuous Charge / Discharge Current	30 A
Peak Current	42 A (10 s)
Battery Technology	Lithium Iron Phosphate (LiFePO₄)
Protection Concept	Multi-level protection system, certified according to VDE 2510-50
Ingress Protection	IP55
Backup Capability	Backup, emergency power and off-grid operation supported
Installation	Plug-and-play, automatic detection by Sungrow hybrid inverters
Dimensions (H × W × D)	625 × 545 × 330 mm
Warranty	10-year manufacturer warranty

Download

Data sheet

For more information, please visit the home page for this product.
