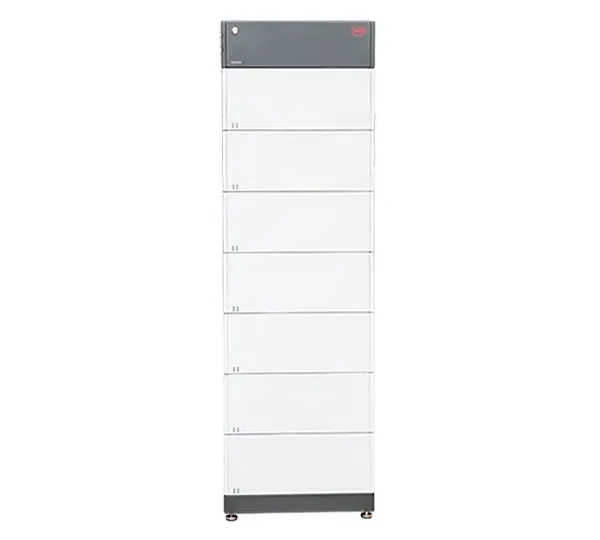

BYD Battery-Box Premium HVM 19.3

Product No.:
30010215
Availability:
Available Available (abroad may vary)
Manufacturer:
BYD
Warranty:
10 years
Battery Type:
High voltage
Weight:
290.4 kg per piece
You do not have permission to view the prices

Add to wish list
Ask about product
Description
Property Value
Scalable up to 66.2 kWh (up to 3 battery towers)
Capacity expandable later Yes
Usable battery capacity 19.32 kWh
Nominal voltage 358 V
Maximum output current 40 A (75 A for 3 seconds)
Battery efficiency ≥ 96%
Operating temperature -10 °C to +50 °C
Protection class IP55
Interfaces CAN / RS485
Height 1927 mm
Width 585 mm
Depth 298 mm
Certifications VDE 2510-50, IEC 62619, CE, UN38.3
Download
Data sheet
PDF download
For more information, please visit the home page for this product.
