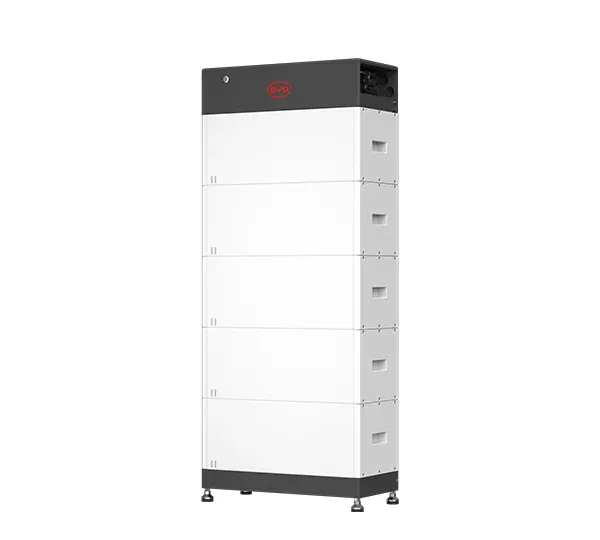

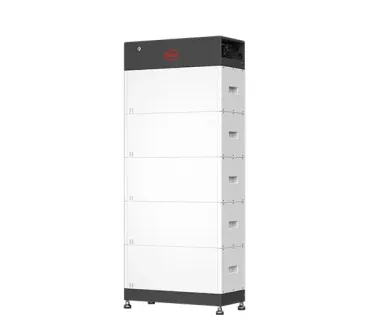

BYD Battery-Box Premium HVM+ 13.8

You do not have permission to view the prices

Description

Property	Value
System type	High-voltage battery storage system (HVM+)
Usable battery capacity	13.80 kWh
Scalability	Up to 66.2 kWh (up to 3 systems in parallel)

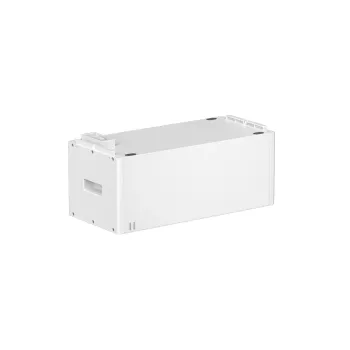

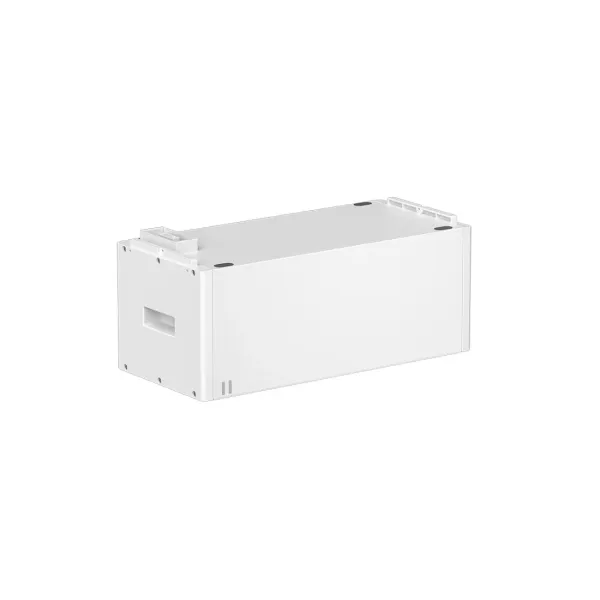

Number of battery modules	5 modules (2.76 kWh each)
Nominal voltage	256 V
Operating voltage	200 – 288 V
Charge / discharge current	50 A continuous, 80 A peak (15 seconds)
Depth of discharge (DoD)	100%
Battery technology	Lithium iron phosphate (LiFePO4)
Communication	CAN / RS485
Protection functions	Over/undervoltage, overcurrent, over/undertemperature (integrated)
Operating temperature	-10 °C to +50 °C
Humidity	5% – 95%
Protection class	IP55
Cooling type	Passive
Installation type	Floor-mounted
Installation location	Indoor and outdoor installation
Dimensions (H × W × D)	1467 × 610 × 282 mm
Certifications	VDE 2510-50, IEC 62619, UN38.3
Warranty	10-year manufacturer warranty
