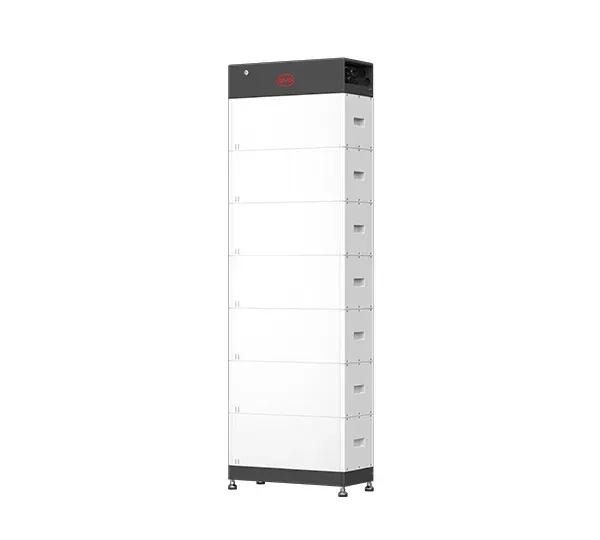

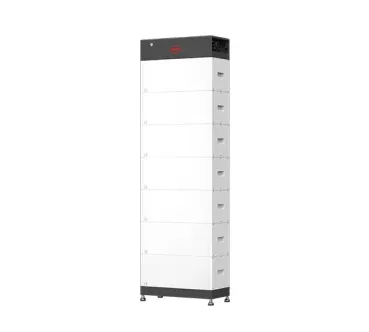

BYD Battery-Box Premium HVM+ 19.3

You do not have permission to view the prices

Description

Specification	Value
System Type	High-voltage battery storage system (HVM+)
Usable Battery Capacity	19.32 kWh
Scalability	Up to 66.2 kWh (up to 3 systems in parallel)

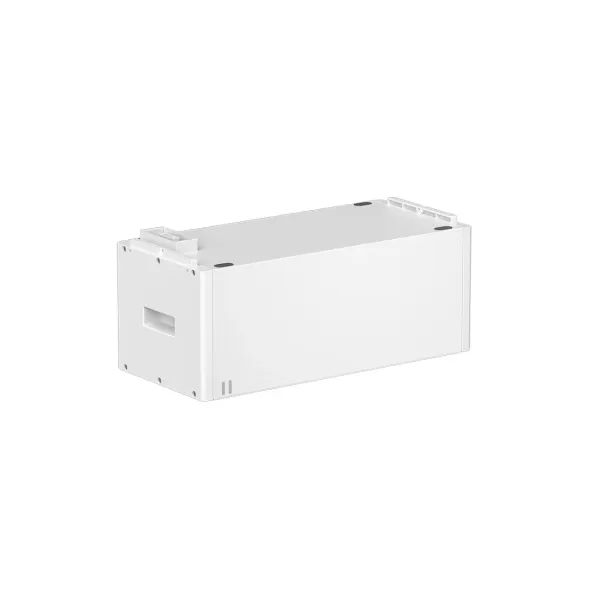

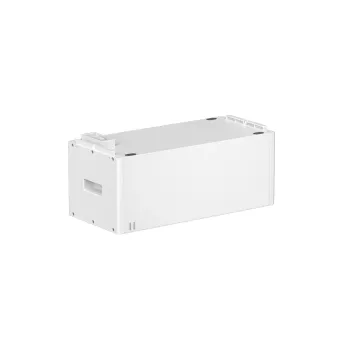

Number of Battery Modules	7 modules (2.76 kWh each)
Nominal Voltage	358.4 V
Operating Voltage Range	280 – 403.2 V
Charge / Discharge Current	50 A continuous, 80 A peak (15 s)
Depth of Discharge (DoD)	100 %
Battery Technology	Lithium Iron Phosphate (LiFePO₄)
Communication	CAN / RS485
Protection Functions	Over-/undervoltage, overcurrent, over-/undertemperature (integrated)
Operating Temperature	-10 °C to +50 °C
Humidity	5 % – 95 %
Ingress Protection	IP55
Cooling Method	Passive
Installation Type	Floor-mounted
Installation Location	Indoor and outdoor installation
Dimensions (H × W × D)	1947 × 610 × 282 mm
Certifications	VDE 2510-50, IEC 62619, UN38.3
Warranty	10-year manufacturer warranty

Download

Data sheet

For more information, please visit the home page for this product.
