Maximum load current / continuous output: 50 A / 30.000 W
Power outage detection: 200 ms
Switchover time grid to off-grid operation: less than 3 seconds (load-dependent)
Current sensors measuring range: 35 A RMS (internal) / up to 70 A RMS (external)
Connections & interfaces: 1 x RJ45 (RS485), 3 x 3.5 mm jack for external sensors
Maximum AC cable cross-section: 35 mm²
Degree of protection & protection class: IP20 / Class I
Dimensions & weight: 170 x 280 x 92 mm (W x H x D) / 1.2 kg
Certificates: VDE 0126, VDE AR-N 4105
System compatibility: hybrid inverter blueplanet hybrid 10.0 TL3
Manufacturer warranty: 2 years
Technical data subject to change without notice. Please refer to the manufacturer's official datasheet.
KACO new energy GmbH was founded in Neckarsulm and has established itself as a tradition-rich German manufacturer firmly on the global market for photovoltaic inverters. As a wholly owned subsidiary of Siemens AG, the medium-sized company combines technological innovation strength in the field of decentralized energy systems with the stability of a globally leading electronics corporation. With a clear focus on digitalization and efficient energy management, KACO is actively driving forward independent and renewable energy supply.
The blueplanet hy-switch product series stands for intelligent switching and measuring solutions that guarantee fully automatic protection of photovoltaic storage systems in the event of power outages. The devices of this series combine precise energy consumption measurements at the feed-in point with all-pole grid disconnection for a safe transition to autonomous off-grid operation. For installation companies, this series offers a time-saving system component due to its uncomplicated housing design and the option for flexible retrofitting.

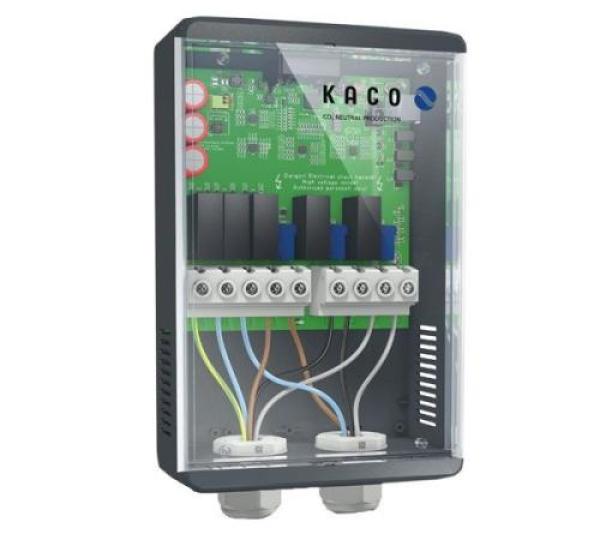

According to the manufacturer, the KACO Blueplanet 1.0 EMAS is the optimal addition for solar systems with the blueplanet hybrid 10.0 TL3 hybrid inverter. The component records energy consumption in real-time with the internal 35 A current sensors and controls safe grid disconnection in the event of a power failure in less than 3 seconds. Installers benefit from high assembly flexibility, as the measuring range can be expanded to 70 A RMS via external sensors and the generous cable cross-section of up to 35 mm² enables fast, standard-compliant wiring in the meter cabinet.
