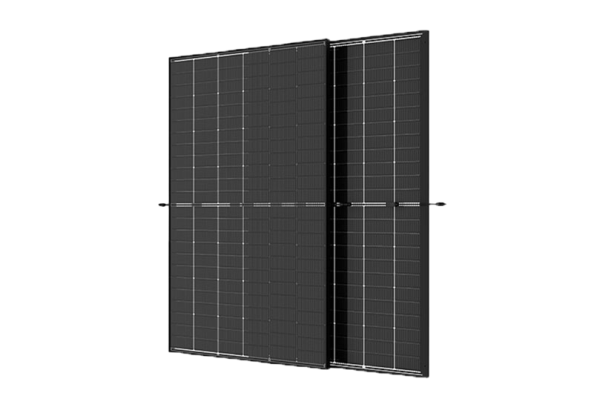

Trina 475W TSM-NEG9R.28 Vertex S+

Trina 475W TSM-NEG9R.28 Vertex S+

Product specifications:

• Manufacturer: Trina Solar
• Product type: Solar module
• Nominal power: 475 Wp
• Module type: N-Type i-TOPCon
• Frame: 30 mm anodised aluminium alloy, black
• Glass: Dual glass
• Module efficiency: 23,8 %
• Maximum system voltage: 1500 V DC
• Power tolerance: 0 / +5 W
• Temperature coefficient Pmax: -0,29 %/°C
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 21,0 kg
• Junction box protection rating: IP68
• Connector: TS4 / MC4 EVO2
• Product warranty: 25 years
• Performance warranty: 87.4 % after 30 years

Trina Solar was founded in China in 1997 and has grown into one of the world's leading suppliers of photovoltaic modules and smart energy solutions. The company employs more than 20,000 people worldwide and is regularly listed as a “Top Tier 1” manufacturer, with annual shipments in the double-digit gigawatt range. Through substantial investment in research and development, Trina Solar holds numerous world records in cell efficiency and plays a decisive role in shaping the global solar market.

The Vertex S+ series represents the next generation of high-performance modules for residential and commercial applications and consistently builds on innovative n-type i-TOPCon technology. The series combines the compact design of the proven Vertex platform with a robust dual-glass structure, resulting in significantly greater durability and resistance to environmental influences. By optimising light absorption and reducing degradation effects, the Vertex S+ range delivers above-average energy yields throughout its entire service life.

With its advanced dual-glass construction, the Trina 475W TSM-NEG9R.28 Vertex S+ offers a maximum of reliability. Thanks to n-type technology, the module shows excellent low-light performance and extremely low annual degradation, which secures stable long-term yields for the end customer. For installers, its high mechanical load capacity of up to 5400 Pa (snow load) and its universal compatibility with common mounting systems make the module particularly efficient to handle.
